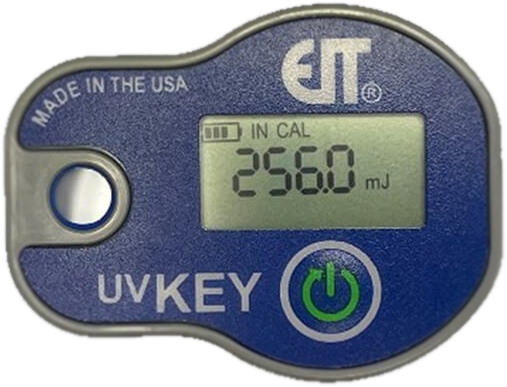

EIT UVKey – Germicidal UVC Radiometer

UVKey™ is a germicidal UV measurement device from EIT, designed with a spectral response at 254 nm and a dynamic range optimized for UVC processing.
The device provides precise digital readings of UV exposure (measured in mJ/cm²), traceable to NIST standards to ensure measurement reliability.

UVKey™ eliminates reliance on user color perception and removes batch-to-batch variability associated with radiochromic films, improving both accuracy and consistency.

With a compact, single-button design, UVKey™ is easy to operate. The device is also IP67-rated, sealed against dust and water spray, making it ideal for use in specialized disinfection environments.

098.3912.259 info@danhhuy.com.vn

Product Introduction

Product Introduction – UVKey G254

The UVKey G254 is a germicidal UV measurement device designed for UVC wavelengths, optimized specifically for measuring germicidal UV light at 254 nm. It is ideal for applications requiring precise control of UV energy dosage.

Target applications include:

  • Hospitals

  • Medical clinics

  • Long-term care facilities

  • Scientific research

Highlighted Features

  • Key Features
  • One-button operation – simple and easy to use for all users
  • Compact design – easily fits into disinfection systems and minimizes shadowing in the measurement area
  • Accurate digital UV readings (mJ/cm²) – NIST-traceable for reliable and consistent measurements
  • Eliminates user color interpretation and variability between batches of radiochromic films
  • Cost-effective opto-electronic solution – ensures high compatibility and repeatability across different devices, UV sources, and measurement sessions
  • Sealed IP67-rated enclosure – fully dust-tight and resistant to water spray for use in demanding environments
  • Available subscription plans – ideal for continuous monitoring needs or device rental services

Technical Specifications

Parameter Specification
Full-scale measurement range Up to 10 mW/cm²
Display resolution / Detection threshold 1 µW/cm² / ~15 µW/cm²
Displayed energy values – < 1 Joule: 0.001 – 999.9 mJ/cm² – ≥ 1 Joule: 1.000 – 999.9 J/cm²
Spectral response 245 – 265 nm; out-of-band blocking: OD > 4 (average)
Spatial response Approximates Cosine (Lambertian) behavior
Accuracy ±5% typical; up to ±10% of reading + ±0.2% of full scale
Repeatability Better than 0.5% typical; maximum < 1%
Calibration Based on low-pressure mercury lamp, NIST-traceable
Sampling rate 1 Hz (1 reading per second)
Display / Interface 4-digit LCD, floating decimal, single-button operation
Service life / Storage life – Service life: 6 months from activation – Storage: 1 month
Recommended recalibration cycle 6 months or when total accumulated dose reaches 500 J/cm²
Operating temperature +10°C to +50°C
Storage temperature -30°C to +70°C
Device dimensions 50.8 x 38.1 x 12.7 mm (2.0” x 1.5” x 0.5”)
Weight 19.8 g (0.7 oz)
Battery / Housing material Non-rechargeable lithium manganese dioxide battery / Thermoplastic polymer
Dust & water protection IP67-rated – fully sealed against dust and water spray
Environmental compliance RoHS3 compliant – free of hazardous substances
